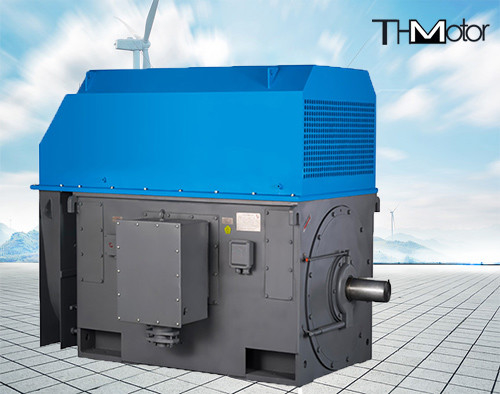

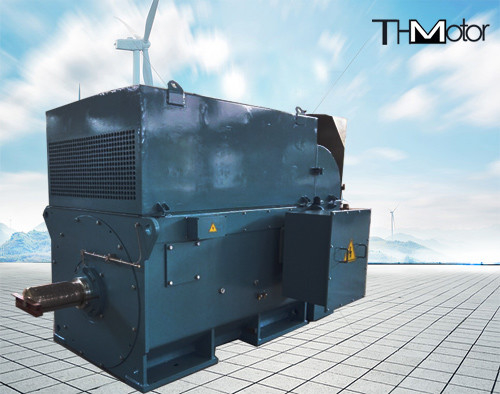

Y800 Sincap Kafesi Yüksek Gerilim Elektrik Motorları 1500r/Dk

Y800 Sincap Kafesi Yüksek Gerilim Elektrik Motorları 1500r/Dk

  • Y800 Sincap Kafesi Yüksek Gerilim Elektrik Motorları 1500r/Dk
  • Y800 Sincap Kafesi Yüksek Gerilim Elektrik Motorları 1500r/Dk
Y800 Sincap Kafesi Yüksek Gerilim Elektrik Motorları 1500r/Dk
Ürün ayrıntıları:
Menşe yeri: Çin
Marka adı: THMotor
Sertifika: CE
Model numarası: Y800-4
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1 Takım
Fiyat: USD 20000-100000
Ambalaj bilgileri: Denize uygun ambalaj
Teslim süresi: 70GÜN
Yetenek temini: 100SET/YIL
İletişim
Detaylı ürün tanımı
Ürün adı: Y800 Büyük Sincap Kafesi Yüksek Gerilim Elektrik Motorları Rulman Güç aralığı: 400-6000kw
Gerilim: 6000v-11000v Hız sınırı: 100rpm-3600rpm
Sıklık: 50Hz,60Hz Soğutma yöntemi: IC01, IC411, IC611
IP oranı: IP23, IP54, IP55 Polonyalılar: 2,4,6,8,12,16
Vurgulamak:

Y800 Yüksek Gerilim Elektrik Motorları

,

Y800 sincap kafesli elektrik motoru

,

sincap kafesli elektrik motoru 1500r/dak

Y800 Büyük Sincap Kafesi Yüksek Gerilim Elektrik Motorları Rulman





Aşağıdaki tablodaki gibi farklı çerçeve ve RPM'deki veriler

model güç
(kW)
hız
(d/dak)
Anma akımı
(A)
verimli
(%)
P,F

kilitli akım

kilitli tork

Tm

Y710-6-4 2500 1500 175.2 95.8 0.86 7.0 0,5 1.8
Y710-7-4 2800 196.0 95.9
Y710-8-4 3150 220.3 96.0
Y710-9-4 3550 248.0 96.1
Y800-6-4 4000 275.9 96.2 0.87
Y800-7-4 4500 310.4 96.2
Y800-8-4 5000 344.5 96.3
Y800-9-4 5600 385.9 96.3
Y900-6-4 6300 433.7 96.4
Y900-7-4 7100 488.2 96.5
Y900-8-4 8000 549,5 96.6
Y1000-6-4 9000 577.5 96.7
Y1000-7-4 10000 685.5 96.8
Y710-6-6 2000 1000 140.6 95.5 0.86 6.5 0,6 1.8
Y710-7-6 2240 157.3 95.6
Y710-8-6 2500 175.4 95.7
Y800-6-6 2800 196.2 95.8
Y800-7-6 3150 220.5 95.9
Y800-8-6 3550 248.2 96.0
Y900-6-6 4000 279.4 96.1
Y900-7-6 4500 314.0 96.1
Y900-8-6 5000 344.9 96.2 0.87
Y900-9-6 5600 386.3 96.2
Y1000-6-6 6300 434.1 96.3
Y1000-7-6 7100 488.7 96.4
Y100-8-6 8000 550.1 96.5
Y710-6-8 1600 750 111.8 95.0 0,82 6.5 0,6 1.8
Y710-7-8 1800 128,5 95.1
Y710-8-8 2000 142.7 95.2
Y710-9-8 2240 159.6 95.3
Y800--6-8 2500 178.0 95.4 0,83
Y800-7-8 2800 199,1 95.5
Y900-6-8 3150 223.8 95.6
Y900-7-8 3550 251.9 95.7 0.84
Y1000-6-8 4000 280.3 95.8
Y1000-7-8 4500 315.0 95.9
Y1000-8-8 5000 349.6 96.0
Y710-6-10 1250 600 95.5 94.5 0,8 6.0 0,6 1.8
Y710-7-10 1400 106.8 94.6
Y710-8-10 1600 109.3 94.7
Y800-6-10 1800 135.3 94.8 0.81
Y800-7-10 2000 150,2 94.9
Y800-8-10 2240 168,0 95.0
Y900-6-10 2500 185.1 95.1 0,82
Y900-7-10 2800 207.1 95.2
Y1000-6-10 3150 229.9 95.3 0,83
Y1000-7-10 3550 258.8 95.4
Y1000-6-12 2500 500 190.3 94.8 0,8
Y1000-7-12 2800 212,9 94.9
Y1000-8-12 3150 239.3 95.0
Y1000-9-12 3550 269.4 95.1
Y710-1-4 3150 1500 361.8 96.3 0.87 6.5 0,5 1.8
Y710-2-4 3550 407.7 96.3
Y710-3-4 400 458.9 96.4
Y710-4-4 4500 516.9 96.4
Y800-1-4 5000 566.6 96.5 0.88
Y800-2-4 5600 634.6 96.5
Y800-3-4 6300 713.2 96.6
Y900-1-4 7100 802.9 96.7
Y900-2-4 8000 903.7 96.8
Y900-3-4 9000 1015.6 96.9
Y710-1-6 2240 1000 261.0 96.0 0.86 6.5 0,6 1.8
Y710-2-6 2500 291.1 96.1
Y710-3-6 2800 326.0 96.1
Y710-4-6 3150 366.4 96.2
Y800-1-6 3550 412.9 96.2
Y800-2-6 4000 465.3 96.3
Y800-3-6 4500 522.9 96.3
Y800-4-6 5000 580.4 96.4
Y900-1-6 5600 642.5 96.4 0.87
Y900-2-6 6300 722.1 96.5
Y900-3-6 7100 812.9 96.6
Y1000-1-6 8000 915.1 96.7
Y1000-2-6 9000 1028.4 96.8
Y1000-3-6 1000 1141.5 96.9
Y710-1-8 1800 750 213.6 95.4 0.85 6.5 0,6 1.8
Y710-2-8 2000 237.1 95.5
Y710-3-8 2240 265.3 95.6
Y800-1-8 2500 295.7 95.7
Y800-2-8 2800 330.9 95.8
Y800-3-8 3150 372.2 95.8
Y800-4-8 3550 419.1 95.9
Y900-1-8 4000 471.7 96.0 0.86
Y900-2-8 4500 514.0 96.1
Y900-3-8 5000 582.2 96.2
Y1000-1-8 5600 651.4 96.2
Y1000-2-8 6300 732,0 96.3
Y1000-3-8 7100 824.1 96.4
Y1000-4-8 8000 927,6 96.5
Y710-1-10 1600 600 195.3 96.0 0,83 6.0
Y710-2-10 1800 219.4 95.1
Y7103-10 2000 600 243.6 95.2 0,83 6.0 0,6 1.8
Y800-1-10 2240 272.5 95.3
Y800-2-10 2500 303.8 95.4
Y800-3-10 2800 339,9 95.5
Y900-1-10 3150 377,5 95.6 0.84
Y900-2-10 3550 425,0 95.7
Y900-3-10 4000 478.3 95.8
Y900-4-10 4500 538.1 95.8
1000-1-10 5000 597.3 95.9
Y1000-2-10 5600 668.9 95.9
Y1000-3-10 6300 751.8 96
Y1000-4-10 7100 847.2 96
Y710-1-12 1120 500 144.4 94.5 0.79 6.0 0,6 1.8
Y710-2-12 1250 161.0 94.6
Y710-3-12 1400 180.1 94.7
Y800-1-12 1600 203.2 94.7 0.80
Y800-2-12 1800 228.4 94.8
Y800-3-12 2000 253,5 94.9
Y800-4-12 2240 283.6 95.0
Y900-1-12 2500 312.0 95.2 0.81
Y900-2-12 2800 349,0 95.3
Y900-3-12 3150 392.3 95.4
Y1000-1-12 3550 441.6 95.5
Y1000-2-12 4000 497.1 95.6
Y1000-3-12 4500 559.2 95.6
Y1000-4-12 5000 620.7 95.7
Y710-1-16 630 375 89.2 93.1 0.73 6.0 0,6 1.8
Y710-2-16 710 100,3 93.3
Y710-3-16 800 112.9 93.4
Y710-4-16 900 126.9 93,5
Y800-1-16 1000 138.9 93.6 0.74
Y800-2-16 1120 155.4 93.7
Y800-3-16 1250 173.3 93.8
Y800-4-16 1400 375 193.9 93.9
Y900-1-16 1600 218.4 94.0 0.75 6.0 0,6 1.8
Y900-2-16 1800 245.4 94.1
Y900-3-16 2000 272.4 94.2
Y1000-1-16 2240 304,8 94.3
Y1000-2-16 2500 339,8 94.4
Y1000-3-16 2800 380.2 94.5
